THE QSA SERIES
DESIGNED FOR YOUR CONVENIENCE

THE JIGGI SYSTEM COMBINES INNOVATION WITH TECHNOLOGY. WE DESIGNED AN APPLICATOR THAT AUTOMATICALLY APPLIES THE JIGGI BLADES TO THE CARTONS: EASY TO HANDLE, BY ONLY 1 PERSON. MAINTENANCE COSTS ARE MINIMUM, MACHINE PARTS ARE EASILY EXCHANGEABLE.



THERE ARE 2 MACHINES AVAILABLE IN THE QSA SERIES, WITH CAPACITIES OF 7200 UP TO 10000 CARTONS PER HOUR

THE SUCCESS OF AN IDEA
DEPENDS ON ITS SIMPLICITY

IT IS ONE OF THE BASIC PRECEPTS OF DAVID KENNIS, TON KENNIS AND FRANS LAMERS: ‘THE SUCCES OF AN IDEA DEPENDS ON ITS SIMPLICITY’. THIS IS HOW IT WORKS FOR THE QSA SERIES OF THE JIGGI APPLICATOR.

Programming the applicator is easy with the touch screen panel. On the display, you can follow important data, such as the production date, order quantity and the total number of cartons produced.



The Jiggi blades are supplied on a role, which is automatically fed to the applicator. The cartons are then stacked in the feed hopper, from which they are transported by the conveyor belts. The blades are applied to the cartons with state-o- the-art technology.

Finally, the cartons – with the Jiggi blades now attached – are transported by the conveyor belts, which neatly stack the finished product. If the belts are full, a sensor automatically stops the applicator.



That’s how simple adding value can be. And it takes 1 person only to control this process.

THE QSA APPLICATOR
A TECHNICAL MASTERPIECE

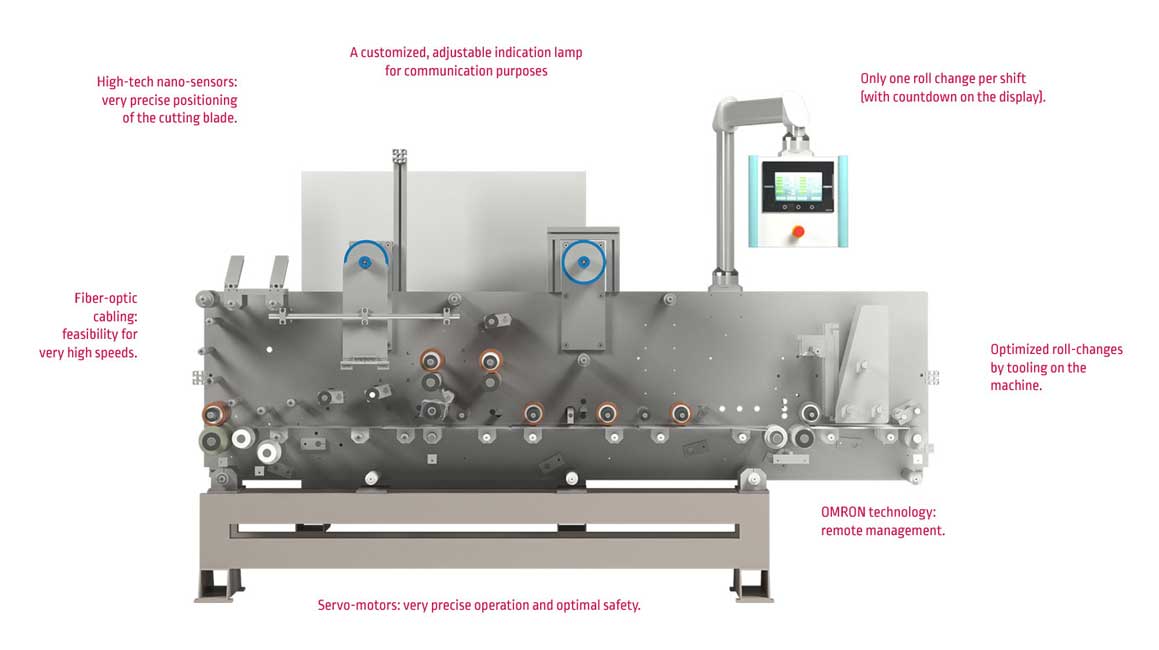

The QSA Applicator: a technical masterpiece

QSA-7200 / QSA-10000

Capacity: 7200 or 10000 cartons per hour. Dimensions: 280x140x140 cm.

JIGGI® APPLICATOR

THE JIGGI SYSTEM IS THE RESULT OF OVER 30 YEARS OF INNOVATION AND TECHNOLOGY. WE HAVE DESIGNED AN APPLICATOR THAT AUTOMATICALLY APPLIES THE JIGGI BLADES TO THE CARTONS: EASY TO HANDLE, BY 1 PERSON ONLY. AN INNOVATIVE SYSTEM THAT ENSURES TOP QUALITY PRODUCTION.

Central electrical power supply
The machine has one central electrical power supply. The engines of the Jiggi applicator work on 110, 220 and 400 Volts.



Easy adjustment
The applicator allows maximum flexibility in the production process, using various types of carton. Adjustment is done in seconds.



Precise application by photocell technology
A special start-stop system enables the applicator to apply the JIGGI blade to the flat carton. Photocell technology ensures that this happens at exactly the
right moment.



OMRON touch screen panel
An OMRON touch screen panel allows simple programming and handling: both the operator and the maintenance people have an easy job. Their settings are stored separately and secured by passwords.

Computerized warning system
A computerized warning system indicates possible machine failures.



Easy in maintenance
Maintenance costs are reduced to a minimum, machine parts are easily replaceable. As we use standard machine parts only, spare parts can be purchased anywhere in the world.



Pre-designed for robotics
The software of the applicator is fully customized. The machine is pre-designed to work with robots.

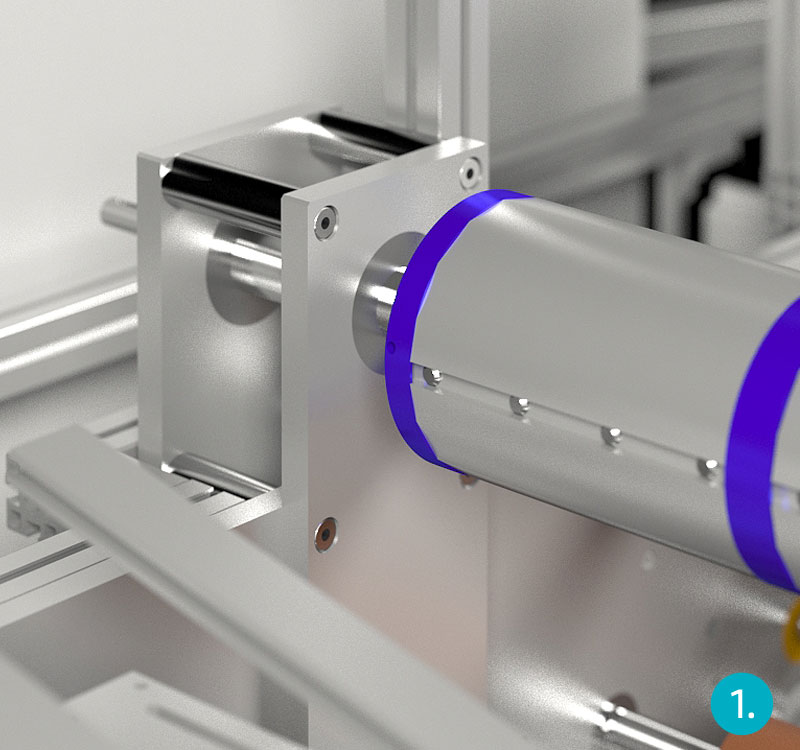

1. ROLL HOLDER.

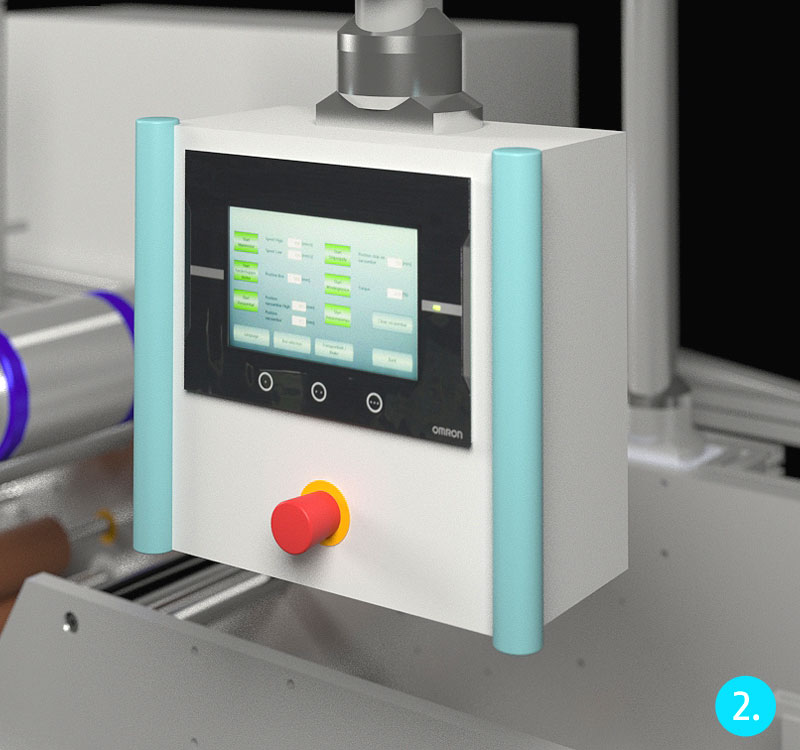

2. OMRON TOUCH SCREEN PANEL.

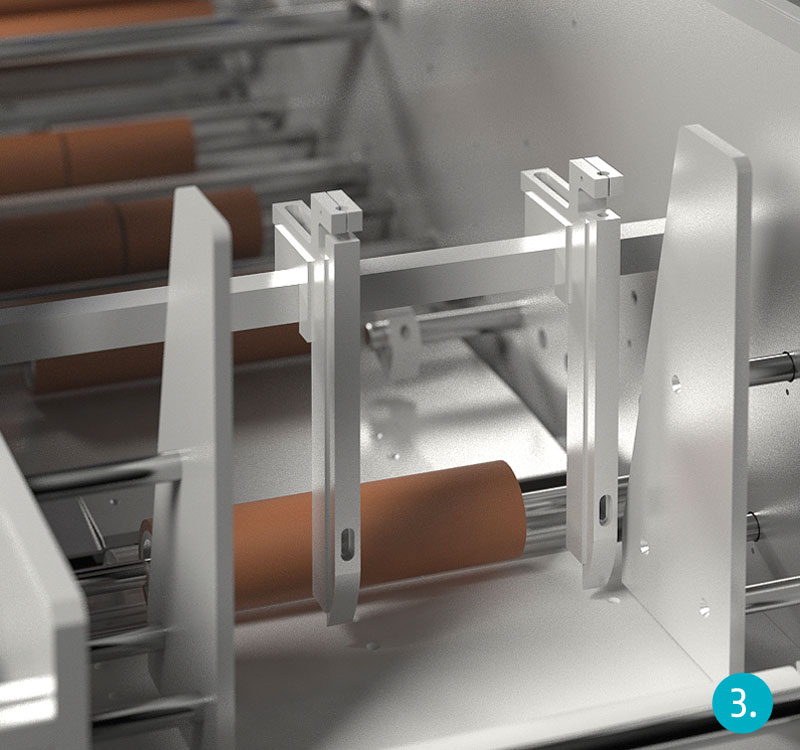

3. FEED HOPPER.

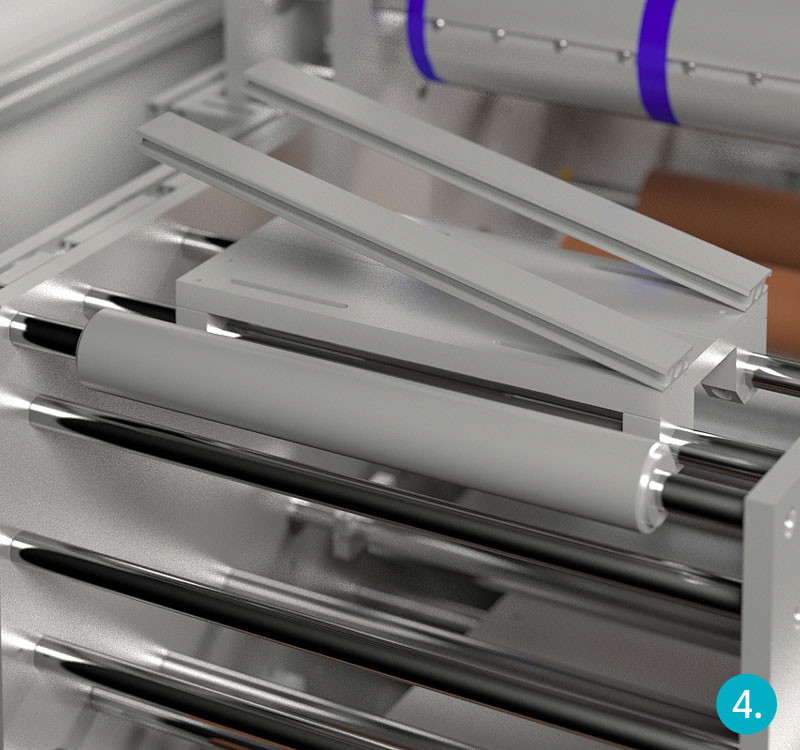

4. ROLL-CHANGE UNIT.

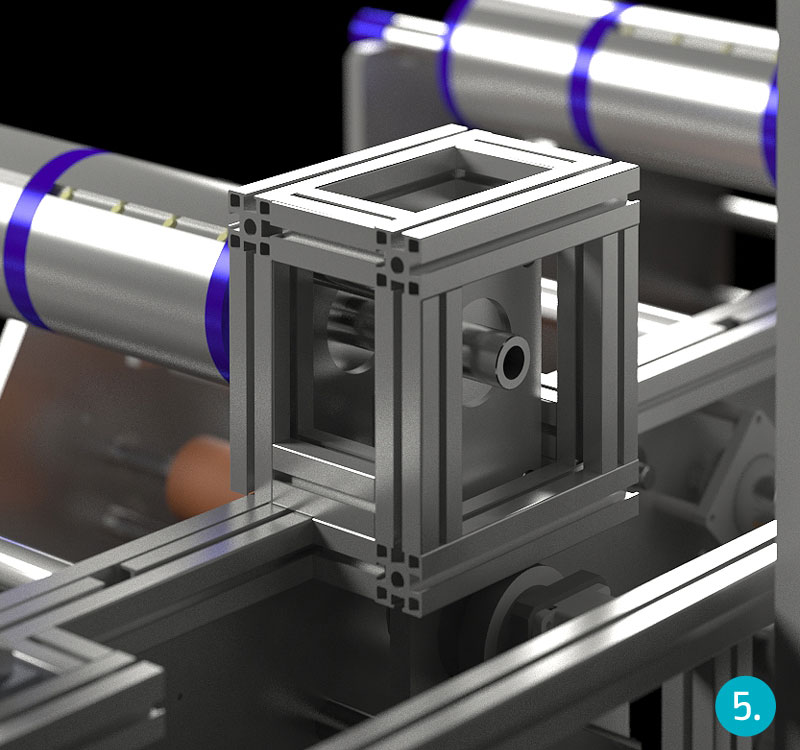

5. COILING UNIT.

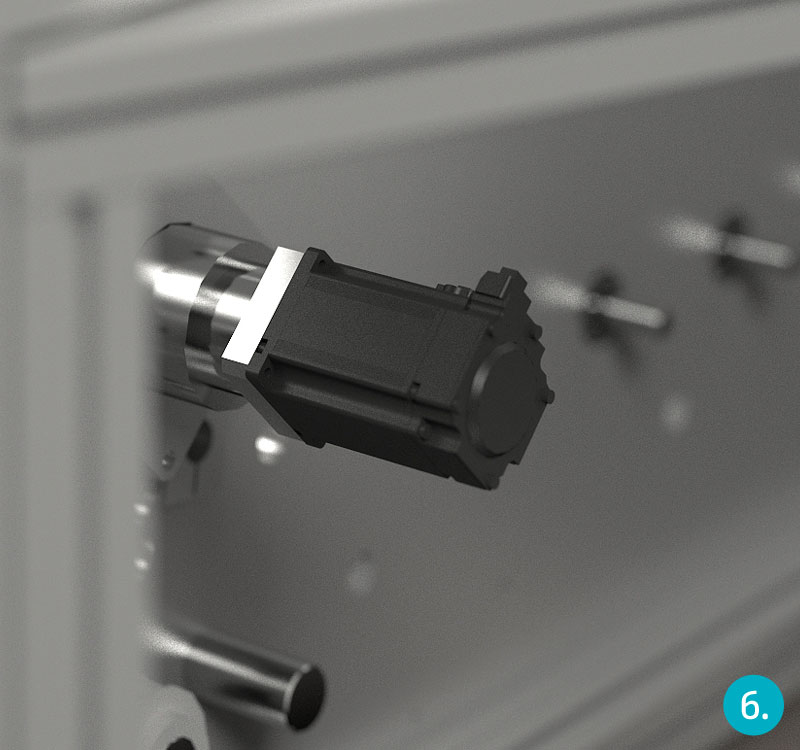

6. SERVO MOTORS.
